X-Gate Digital Gate Lock – Full Technical Specifications & Features

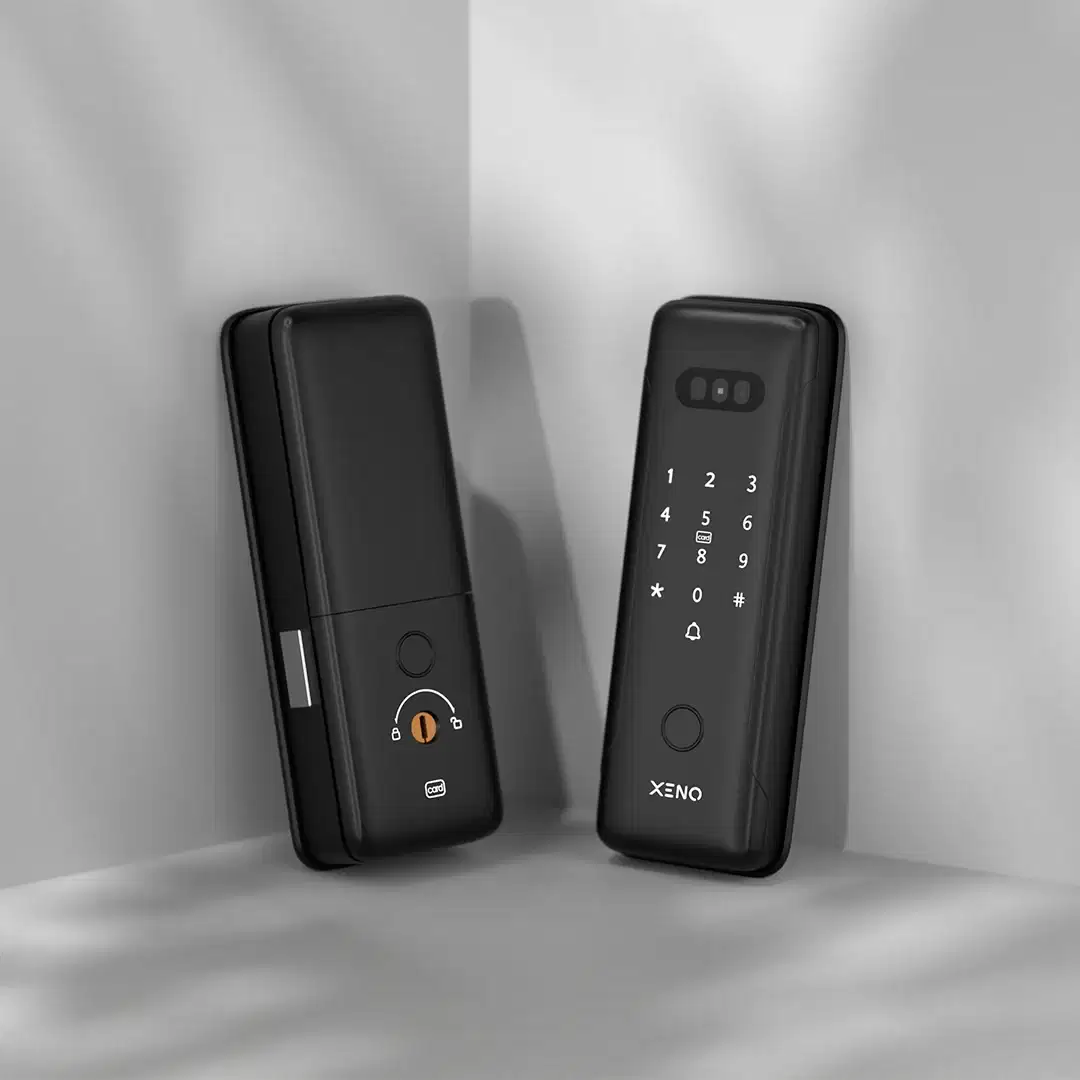

X Gate Lock
Key Features of the X Gate Digital Lock
Specification
Front Panel (mm):
22 (D) x 77.5 (W) × 217 (H) mm
Back Panel (mm):
43 (D) x 77.5 (W) x 217 (H) mm
Mortise Type
Mechatronic Fully Automatic Rotating Latch Mortise
Door Thickness (mm):
40- 110
Facial Recognition Supported Height Range (cm):
130- 200
Unlocking Method
Front Side: Palm Vein, Face Recognition, Fingerprint, PIN Code, RFID Card, Mobile APP, Synchronise Unlock
Back Side: Fingerprint, RFID Card, Key, Mobile APP, Remote Controller
Gate to Door allowance
≤ 43mm
Exterior
Material
Aluminium Alloy
Colour
Nano Black
Fingerprint Sensor Type
Semiconductor Fingerprint Sensor
Number Pad
12 Touch Buttons + 1 Doorbell Button
Registration Storage Capacity
Facial Recognition
100 Users
Palm Vein
100 Prints
Fingerprint
100 Prints
Password
200 Sets
RFID Card
200 Cards
Unique Features
Alarm Types
Anti Theft Alarm / Low Power Alarm / Multiple Attempt Alarm / Tamper Alarm / Anti Hijacking Alarm
Video Intercom
Yes
Audio Intercom
Yes
Doorbell
Standalone Door Bell
Human Detection
LiDa Technology
Two way synchronization
Unlock from inside or outside — both door and gate will open together automatically.
Electronic Module
Low Battery Alarm
Alarm Triggered when battery drops below 7.2V
Operating Voltage
7.4V
Battery Power Supply
Lithium Battery 5000mAH × 1
Number of Usage Allowable
4-6 Months (10 interaction/Day)
External Emergency Power Supply
Type-C Connection Port
Palm Vein
Unlock Speed: < 1s
Palm Vein Activate Optimal Distance: 13 – 25cm
Fingerprint
Semiconductor Fingerprint Sensor
Sensor Resolution: 508 DPI
Fingerprint False Rejection Rate: <3%
Fingerprint False Acceptance Rate: <0.001%
Fingerprint Matching Method: 1:N
Fingerprint Matching Time: ≤0.8s
Password
Numeric Touch Password
Password Length: 6- 10 digits
Fake Password Length: 16 digits
Facial Recognition
IR Camera (200W Megapixels)
Activate Recognition Speed: < 1s
Facial Recognition Optimal Distance: 40- 90cm
False Acceptance Rate (FAR): <0.0001%(1PPM)
False Rejection Rate (FRR): ＜1%
Remote Control
433 Remote Control
Electrostatic Interference Protection
Yes
RFID Card Chip
BF5823AM48 Integrated
Card Type
ISO/IEC 14443A Type A , M1
Card Reading Distance
0- 5mm, Response Time <1.5S
Video Intercom
Yes, Build-in Camera (Intercom)
Audio Intercom
Yes, Build-in Camera (Intercom)
Camera Parameters
Infrared (IR) FOV: H82°, V66°, D95° Colour FOV: H96°, V77, D115°
Network Connection Method
Build in Wi-Fi 2.4G
Mechanical Module
Main Latch / Slant Bolt
Stainless Steel Material
Top &Bottom Hooks
Fixed Top and Bottom Hooks (Optional)
Mortise Specification
Electromechanical Integrated Fully Automated Flip Latch Lock Body (6068/7068)
Slant Bolt Mechanism
Flip Latch
Main Latch Lateral Static Load
8000N (GA374-2019 GradeB Standard Criteria 6000N)
Main Latch Axial Static Load
6000N (GA374-2019 GradeB Standard Criteria 3000N)
Flip Latch Lateral Static Load
6000N
Emergency Mechanical Lock
Lock Cylinder Mechanism
Electrostatic Interference Protection
Grade IV
High and Low Temperature Environment
-25℃- 70℃, Condensation-Free
Operating Humidity
25%RH- 93%RH, Condensation-Free
Anti-Theft Lock Grade
GA374-2019 Electronic Anti-Theft Lock- Grade B
App Feature
Anti Prying Alarm
Yes
Door Opening Record
Yes
Alarm Record
Yes
Temporary Pin
Yes
Execution Standards
GA374-2019 Electronic Anti-Theft Lock- Security Grade B, Environmental Grade II
Warranty
2 + 1 Years Warranty
