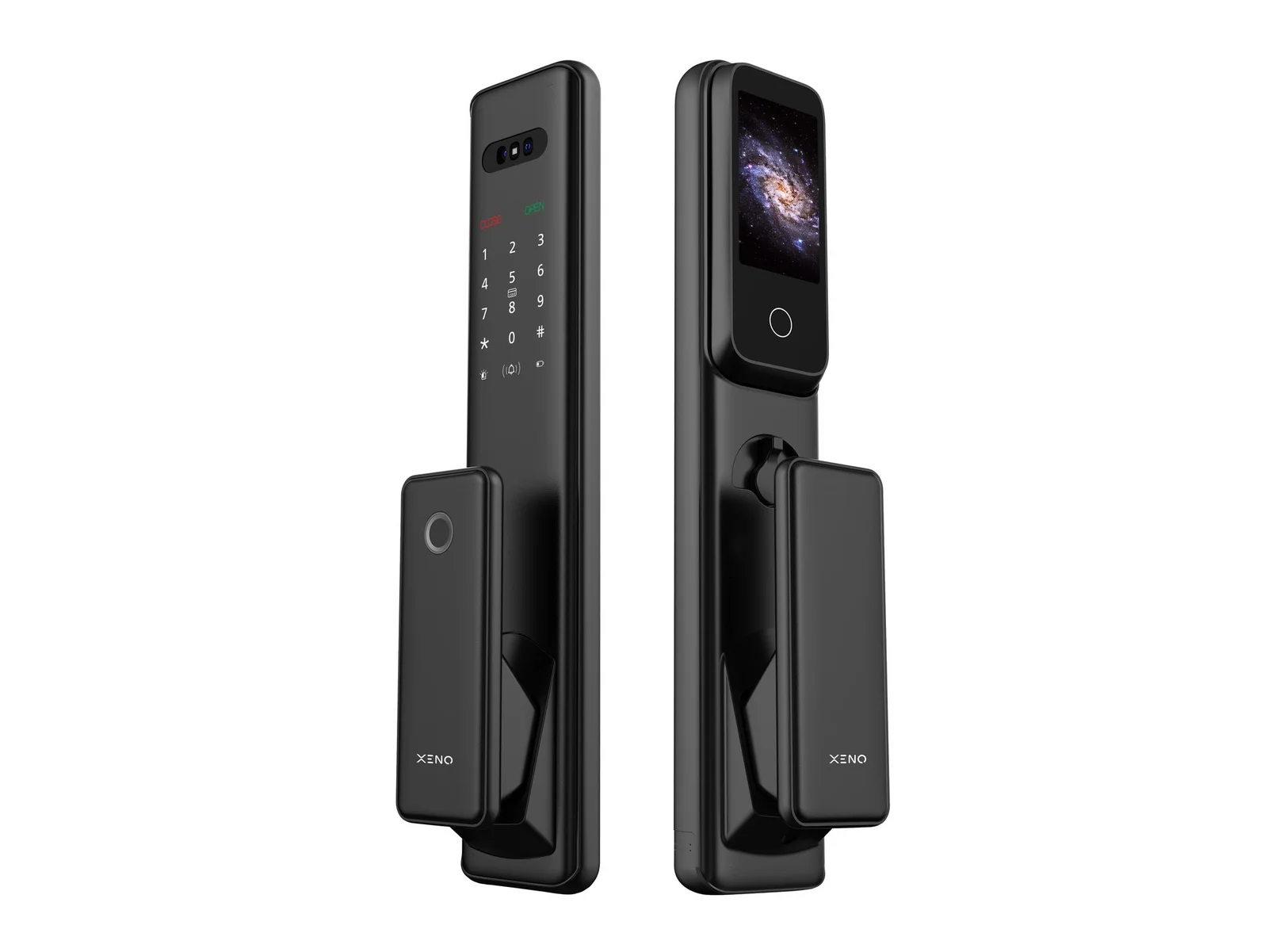

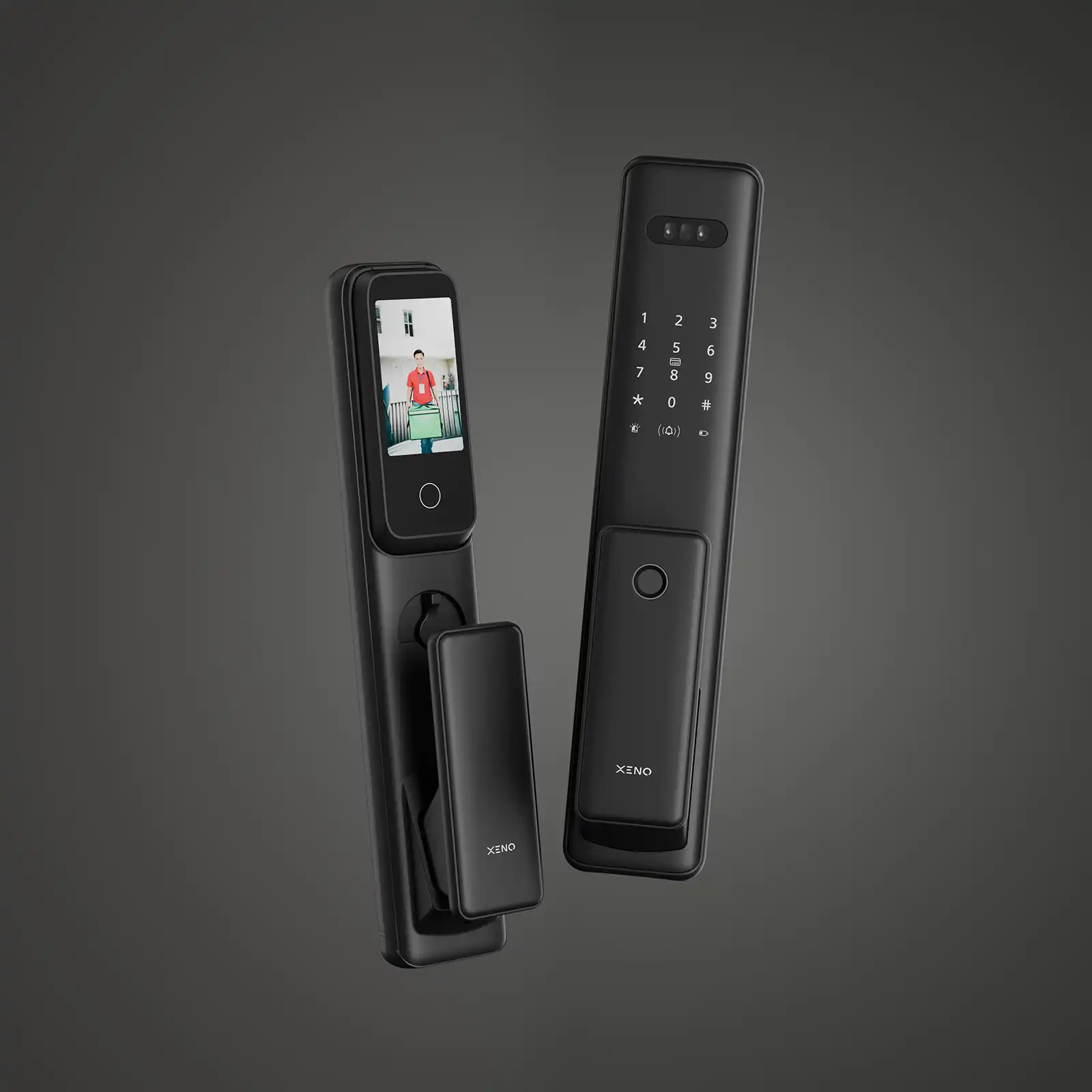

Alexo Pro Max
Specification
Front Panel (mm):
394×78.5×61.75
Back Panel (mm):
394 x 78 x 64.75
Mortise Type
Mechatronic Fully Automatic Rotating Latch Mortise
Door Thickness (mm):
40- 110
Facial Recognition Supported Height Range (cm):
130- 200
Unlocking Method
Palm Vein / Facial Recognition / Fingerprint / Password / Card / Key / Synchronised / Mobile App / Remote Control (Optional)
Exterior
Material
Aluminium Alloy
Colour
Nano Black
Handle Type
Push Pull Fixed Handle
Fingerprint Sensor Type
Semiconductor Fingerprint Sensor
Number Pad
12 Touch Buttons + 1 Doorbell Button
Registration Storage Capacity
Facial Recognition
100
Palm Vein
100
Fingerprint
100
Password
200
RFID Card
200
Total: Upto 200 User
Facial and palm total 100 User
Unique Features
Facial Recognition Optimal Distance (cm):
40- 90
Palm Vein Optimal Distance (cm):
13- 25
Unlocking Record
Upto 500 records
Alarm Types
Anti Theft / Low Voltage / Multiples Attempt / Anti-Hijacking / Failed to lock
Video Intercom
Yes
Display Screen
Yes
Doorbell
Standalone Doorbell
Motion Detection
LiDa Technology
Synchronise Unlock
Yes (Both Ways)
Electronic Module
Low Battery Alarm
Alarm Triggered when battery drops below 7.2V
Operating Voltage
7.4V
Standby Mode Power Consumption
Test and update after sample arrives
Operating Mode Power Consumption
Test and update after sample arrives
Battery Power Supply
Dual Lithium Ion Battery 5000mAh + 5000mAh
Number of Usage Allowable
Test and update after sample arrives
External Emergency Power Supply
5V Portable Power Bank Type-C Connection Port
Fingerprint
Semiconductor Fingerprint Sensor
Sensor Resolution: 508 DPI
Fingerprint False Rejection Rate: <3%
Fingerprint False Acceptance Rate: <0.001%
Fingerprint Matching Method: 1:N
Fingerprint Matching Time: ≤0.8s
Password
Numeric Touch Password
Password Length: 6- 10 digits
Fake Password Length: 16 digits
Facial Recognition
IR Camera (200W Megapixels)
Activate Recognition Speed: < 1s
Facial Recognition Optimal Distance: 40- 90cm
False Acceptance Rate (FAR): <0.0001%(1PPM)
False Rejection Rate (FRR): ＜1%
Palm Vein
Palm Vein Optimal Distance: 13- 25cm
False Acceptance Rate (FAR): <0.0001%(1PPM)
False Rejection Rate (FRR): ＜1%
Remote Control
433 Remote Control
Electrostatic Interference Protection
Yes
RFID Card Chip
BF5823AM48 Integrated
Card Type
ISO/IEC 14443A Type A , M1
Card Reading Distance
0- 5mm, Response Time <1.5S
Video Intercom
Supports real-time two-way intercom, remote
video monitoring, remote unlocking via mobile phone
Camera Parameters
Infrared (IR) FOV: H82°, V66°, D95° Colour FOV: H96°, V77, D115°
Video Intercom Network Connection Method
Build-in Wi-Fi 2.4G
Display Screen
3.97”
Display Resolution
RGB: 480 * 800
Display Panel Type
IPS
Door Open/Close Abnormal Alarm
Yes
Mechanical Module
Main Latch / Slant Bolt
Stainless Steel Material
Top &Bottom Hooks
Fixed Top and Bottom Hooks (Optional)
Mortise Specification
Electromechanical Integrated Fully Automated Flip Latch Lock Body (6068/7068)
Slant Bolt Mechanism
Flip Latch
Main Latch Lateral Static Load
8000N (GA374-2019 GradeB Standard Criteria 6000N)
Main Latch Axial Static Load
6000N (GA374-2019 GradeB Standard Criteria 3000N)
Flip Latch Lateral Static Load
6000N
Emergency Mechanical Lock
Lock Cylinder Mechanism
Electrostatic Interference Protection
Grade IV
Corrosion Resistance
Environmental Adaptability Grade II, Neutral Salt Spray 96H
High and Low Temperature Environment
-25℃- 70℃, Condensation-Free
Operating Humidity
25%RH- 93%RH, Condensation-Free
Anti-Theft Lock Grade
GA374-2019 Electronic Anti-Theft Lock- Grade B
App Feature
Video Intercom
Two-way Real Time Intercom
Loitering Capture
Yes
Door Access Record Trace back
Yes
Alarm Record Trace back
Yes
Remotely Temporary Password
Yes
User Management & Association
Yes
Execution Standards
GA374-2019 Electronic Anti-Theft Lock- Security Grade B, Environmental Grade II
Warranty
2 + 1 Years Warranty
